ROS 2 Jetson-Arduino Autonomous Robot



This repository contains the ROS 2 packages and configurations developed during my internship. The project focuses on building an autonomous mobile robot using a Jetson Orin Nano (or similar Jetson board) as the main computer, an Arduino for low-level motor control, and a YDLidar for environmental perception. It features complete implementations for serial communication, SLAM (Simultaneous Localization and Mapping), and autonomous navigation.
Project Details

Overview

  • Hardware: Jetson Board, Arduino, YDLidar (X4), Robot Chassis with Motors.
  • Software: ROS 2, Cartographer, Gmapping, Nav2.

The workspace primarily consists of:

  • serial_bridge: Handles bidirectional communication between the Jetson and Arduino for motor control.
  • allbot / allbot_urdf / allbot_param: Core robot packages containing launch files, URDF models, and navigation parameters.
  • ydlidar_ros2_driver: ROS 2 driver for the YDLidar sensor.
  • slam_gmapping: Package for Gmapping SLAM.

1. Jetson-Arduino Connection & Motor Control

The serial_bridge package is responsible for sending velocity commands to the Arduino and receiving data back.

  • Node: serial_bridge
  • Script: serial_bridge/serial_bridge.py
  • Serial Configuration: The node connects to /dev/ttyTHS1 at 115200 baud rate by default. You can change these via parameters port and baudrate.
  • Communication Protocol:
    • The node listens to the cmd_vel topic (type geometry_msgs/Twist).
    • It parses the linear and angular velocities and sends a formatted string to the Arduino: v <linear.x> <linear.y> <angular.z>\n.
    • It continuously reads from the serial port to get raw velocity updates or other info published by the Arduino and publishes it to raw_vel.

Running the Serial Bridge

To start the communication node:

ros2 run serial_bridge serial_bridge

2. SLAM (Simultaneous Localization and Mapping)

The robot supports multiple SLAM algorithms. The launch files for SLAM integrate the lidar driver, URDF publisher, and the respective SLAM node.

Cartographer

The cartographer implementation uses Google Cartographer to generate highly accurate 2D grid maps. Configuration files are situated in allbot/launch/include/allbot_lidar_standalone.lua.

ros2 launch allbot lidar_slam_carto.launch.py use_sim_time:=false resolution:=0.05

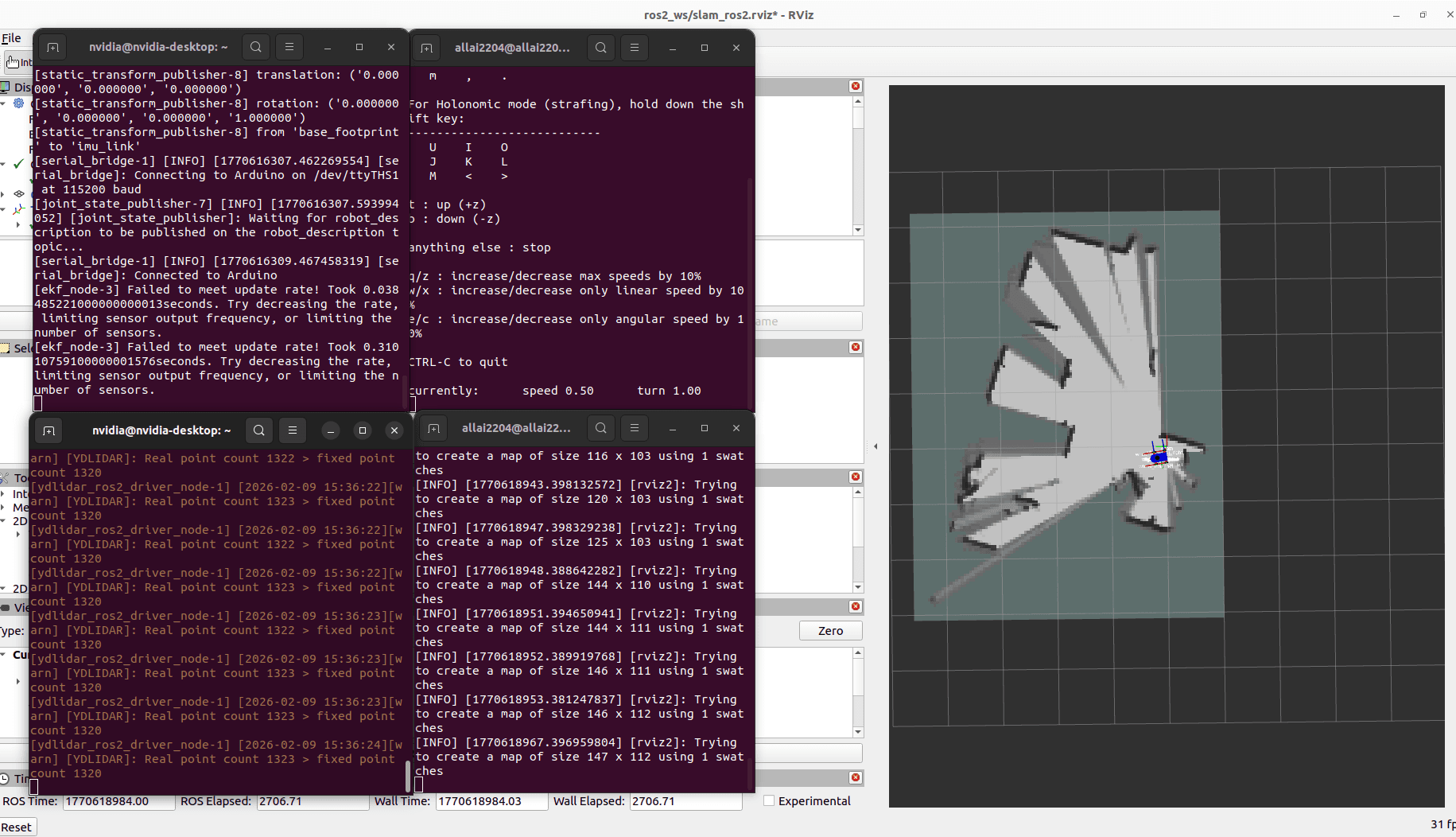

Cartographer Result

Gmapping

For traditional filter-based SLAM, Gmapping is available.

ros2 launch allbot lidar_slam_gmapping.launch.py use_sim_time:=false

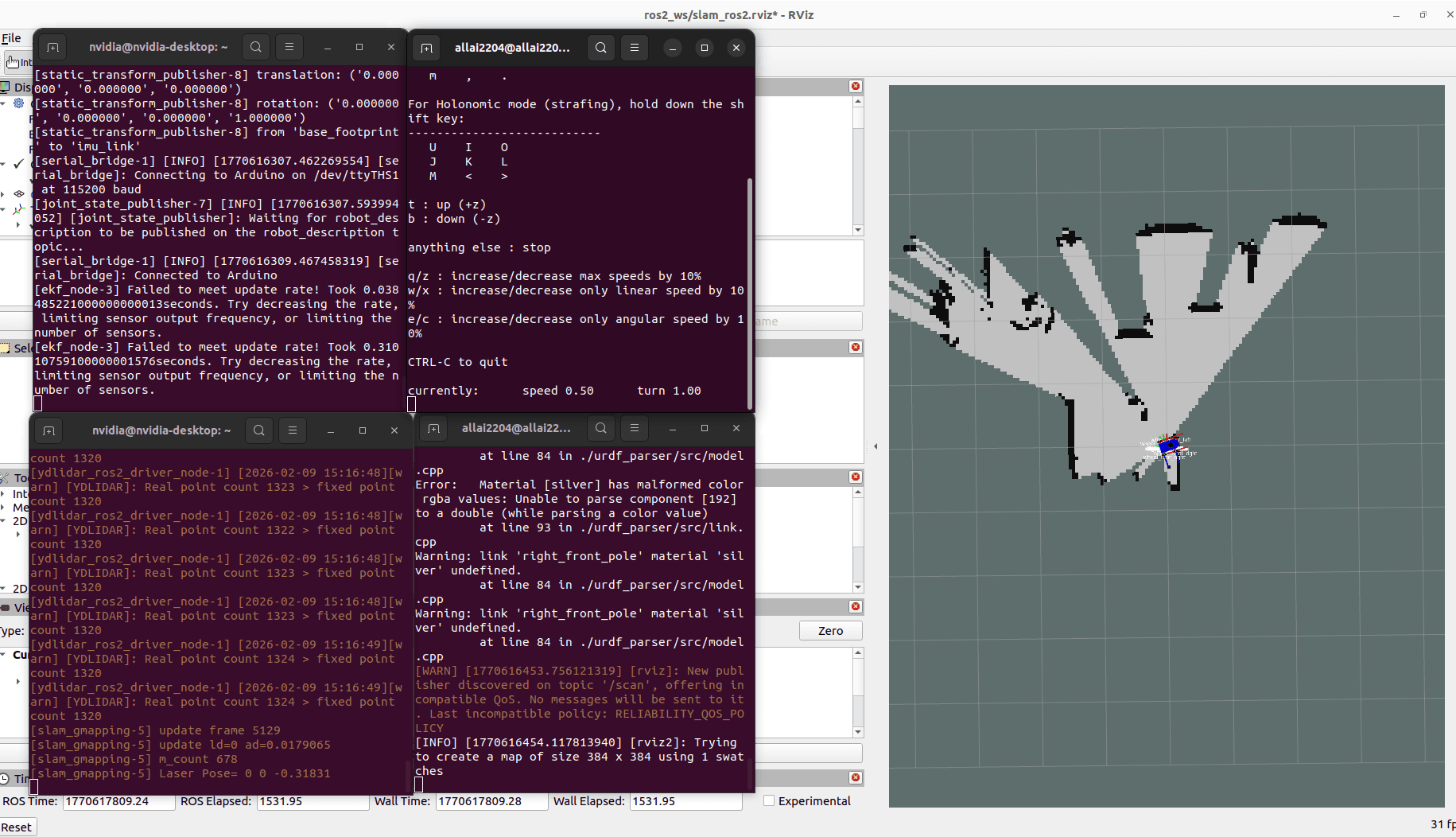

Gmapping Result

3. Autonomous Navigation

Navigation is handled via the ROS 2 Navigation Stack (Nav2). The main launch file navigate.launch.py located in the allbot package can be booted in two different modes: Simultaneous SLAM & Navigation or AMCL Localization on a Saved Map.

Mode A: Navigation with Saved Map (AMCL)

If you have already generated a map (e.g., my_map.yaml in allbot/maps/), you can launch standard AMCL-based localization.

ros2 launch allbot navigate.launch.py slam:=False map:=<path_to_map.yaml> autostart:=true
  • The default map is allbot/maps/my_map.yaml.
  • The default parameter file for Nav2 is allbot_param/navigation/nav2_params.yaml.

Mode B: Navigation with Simultaneous Mapping (SLAM)

This mode integrates SLAM with the navigation capabilities.

ros2 launch allbot navigate.launch.py slam:=True autostart:=true

Notes on Navigation Setup

  • The URDF the robot state publisher (urdf.launch.py) will launch automatically unless you set launch_urdf:=false.
  • The YDLidar node will launch automatically unless you set launch_lidar:=false.
Nav result
